Introduce :
A vertical fume scrubber, also known as a vertical scrubber or a vertical wet scrubber, is a highly efficient air pollution control device used in industrial settings. This article aims to provide a comprehensive overview of vertical fume scrubbers, how they work, components and benefits. By understanding the key features and benefits of vertical flue gas scrubbers, industries can make informed decisions to improve air quality while ensuring compliance.

1: Understand the vertical fume scrubber

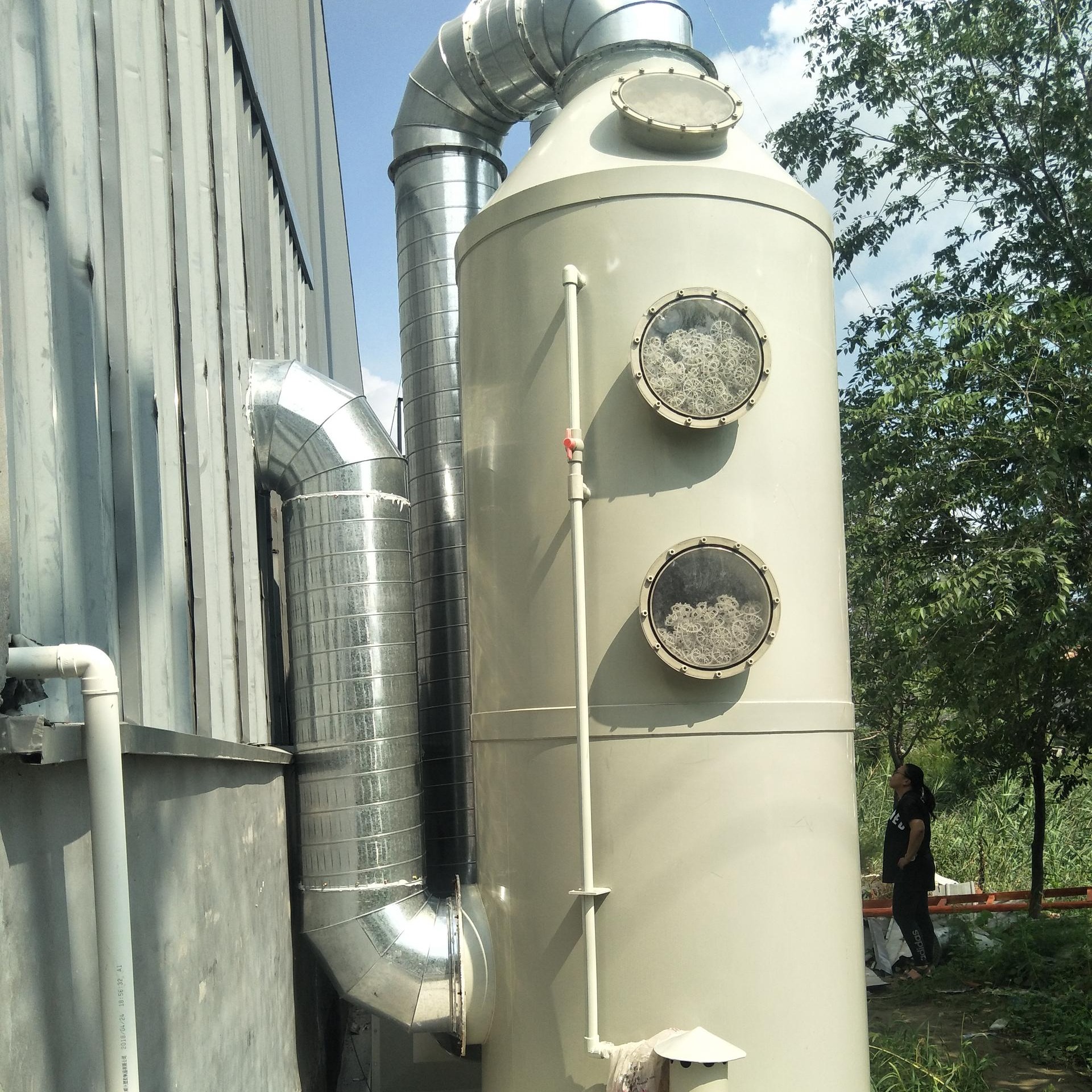

Vertical fume scrubbers are specialized air pollution control equipment designed to remove harmful fumes, gases and particulates from industrial exhaust streams. By employing a vertical configuration, these scrubbers facilitate efficient gas-liquid contact and contaminant removal. With a counter-current design, the contaminated gas enters the scrubber from the bottom and moves upward, while the scrubbing liquid is introduced from the top and flows downward. This configuration maximizes contact time and surface area, resulting in efficient contaminant capture and treatment.

2: Key components of vertical fume scrubber

Vertical fume scrubbers consist of several basic components that work together to achieve efficient pollutant removal. These include:

• Column/Column: A vertical vessel packed with structured or random packing material to enhance gas-liquid contact.
• Washing liquid supply system: use nozzles, distribution pans or other means to evenly distribute the washing liquid on the packaging material.
• Filling: The packing of the scrubber is mainly used to increase the contact area between gas and liquid and improve the purification efficiency.
• Mist eliminators: prevent droplets from being carried into the outlet air stream.
• Exhaust system: usually use a negative pressure blower to introduce the exhaust gas into the scrubber and discharge it.
• Liquid circulation system: collects and processes contaminated wash liquid for reuse.

3: Working principle of vertical fume scrubber

Vertical fume scrubbers operate on the absorption principle, where the polluted gas stream comes into contact with a scrubbing liquid. Contaminants present in the gas stream are removed by dissolving or chemically reacting with the liquid. Countercurrent mode allows efficient mass transfer and absorption of pollutants. As the gas rises through the tower, it gets progressively cleaner, while the scrubbing liquid collects trapped pollutants at the bottom. The liquid is then treated and recycled for further use.

4: Advantages and applications of vertical flue gas scrubber

Vertical fume scrubbers offer numerous advantages in terms of air pollution control and environmental compliance. Some key benefits include:

1. Effectively removes harmful pollutants including acid gases, alkaline gases, organic compounds and particulate matter.
2. Comply with strict air quality regulations and emission standards.
3. Protect worker health and safety by reducing exposure to hazardous fumes.
4. Versatility in handling a wide variety of industrial processes and pollutants.
5. Custom designs are available to meet specific application requirements.

Conclusion
Vertical fume scrubbers are important air pollution control equipment widely used in various industries. Using a vertical configuration and maximizing gas-liquid contact, these scrubbers effectively remove harmful fumes, gases and particulates from industrial waste streams. With their customizable design and compliance with regulatory standards, vertical fume scrubbers play a vital role in ensuring clean air, protecting worker health and promoting environmental sustainability in industrial operations.
