Activated carbon adsorption equipment
Activated carbon adsorption equipment introduction：
Activated carbon adsorption equipment is mainly used for VOC organic waste gas purification treatment. Activated carbon adsorption box is a dry exhaust gas purification equipment, which consists of a box and an activated carbon adsorption unit filled in the box. Activated carbon adsorption box is an efficient, economical and practical organic waste gas treatment equipment, which plays the role of filtering and adsorbing odor; activated carbon adsorption box is widely used in the treatment of VOC organic waste gas discharged in workshops, laboratories and other environments, such as benzene, alcohol, Ketones, ethers, alkanes, aldehydes, phenols, and other volatile gases are mainly used in chemical, machinery, printing, rubber, furniture, electromechanical, marine, automotive, petroleum and other industries.
The working principle of activated carbon adsorption box
During the adsorption process of the activated carbon adsorption box, due to the existence of unbalanced and unsaturated molecular attraction or chemical bond force on the solid surface of the activated carbon, when the solid surface is in contact with the gas, it can attract the gas molecules to concentrate and keep it in the solid state. surface, this phenomenon is called adsorption. Using the adsorption capacity of the solid surface, the exhaust gas is brought into contact with the porous solid material on the large surface, and the pollutants in the exhaust gas are adsorbed on the solid surface to separate it from the gas mixture to achieve the purpose of purification. After the organic waste gas is removed by the air filter to remove the tiny suspended particles, it enters the adsorption box, and after being adsorbed by the activated carbon in the box, the harmful components are removed, and the purified gas that meets the emission standard is discharged to the outside through the fan.
Activated carbon adsorber product features
Activated carbon adsorption equipment treats VOC organic waste gas, with mature technology, stable operation and good treatment effect. At the same time, according to the characteristics of the exhaust gas emitted in different production processes, such as the temperature of the exhaust gas, whether it contains oil mist, dust and other related parameters, a pretreatment device such as a cooler and a primary filter can be built or added at the inlet of the activated carbon adsorption box. It can protect the activated carbon adsorption section and ensure that the activated carbon adsorption box operates in an efficient state.
- High adsorption efficiency and strong capacity;
- The equipment has a compact structure, a small footprint, simple and convenient maintenance and management, and low operating costs;
- Able to treat a variety of mixed organic waste gas at the same time;
- Adopt automatic control operation design, easy and safe operation;
- Fully enclosed type, can be used indoors and outdoors
Activated carbon adsorption equipment composition structure

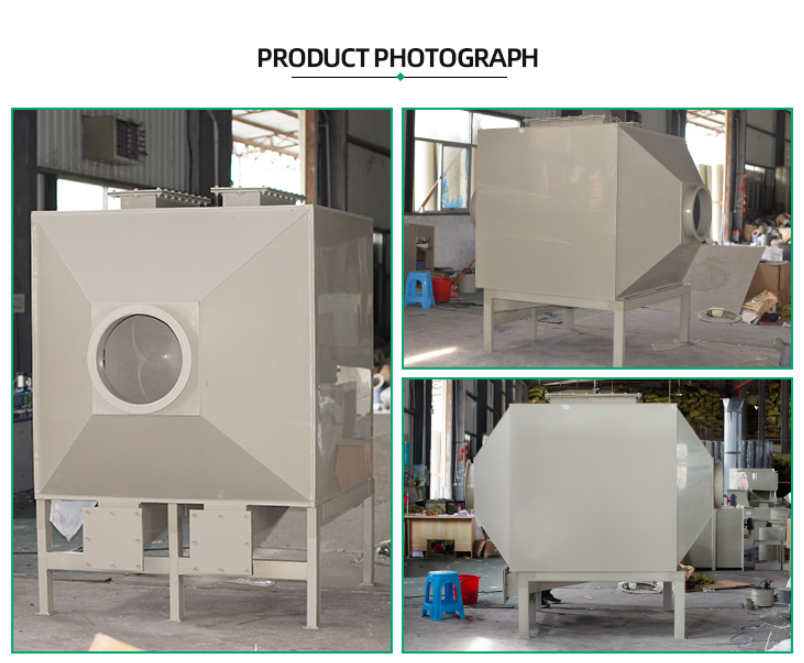

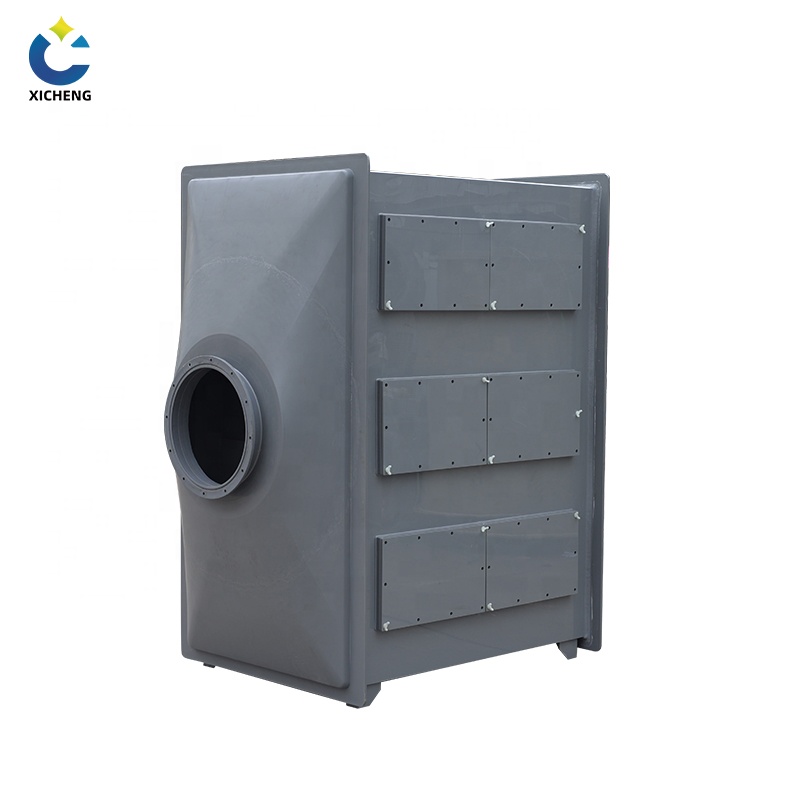

The activated carbon adsorption box has a simple structure, and there are two types of vertical structure and horizontal structure. The commonly used is the horizontal structure. The inlet and outlet are on both sides and on the same axis. The horizontal activated carbon adsorption box contains the following components.
The body part of the adsorption box contains: an air inlet, an air outlet, and an activated carbon layer.
The adsorption layer part of the adsorption box contains: punching plate, adsorption material inlet and outlet, emergency channel;
Activated carbon adsorption box industry application
The activated carbon adsorption box is widely used in the terminal treatment of industrial organic waste gas and laboratory exhaust air purification, and the purification effect is good. After the gas enters the activated carbon adsorption box through the pipeline, a diffusion process occurs between the two different phase interfaces. After the diffusion, the gas is sucked out by the fan and discharged.
The activated carbon adsorption box is mainly used for the treatment of organic waste gas with large air volume and low concentration; the activated carbon adsorbent can treat and purify a variety of organic and inorganic pollutants: benzene, ketones, alcohols, ethers, alkanes and their mixed organic waste gas, Acid waste gas, alkaline waste gas; mainly used in pharmaceutical, smelting, chemical, machinery, electronics, electrical appliances, painting, shoemaking, rubber, plastic, printing and environmental protection desulfurization, deodorization and harmful waste gas generated by various industrial production workshops. Purification treatment. Several typical industrial applications of activated carbon adsorption boxes are listed below.
What is in the activated carbon adsorption box
The activated carbon adsorption box is filled with granular activated carbon. Activated carbon is a very fine carbon particle with a large surface area, and there are even finer pores in the carbon particle - capillary. This capillary has a strong adsorption capacity, Due to the large surface area of carbon particles, they can fully contact with gases (impurities), and when these gases (impurities) hit the capillary, they are adsorbed and purify. The essence of activated carbon adsorption is to use the characteristics of activated carbon adsorption to adsorb organic solvents in low concentration and large air volume exhaust gas into activated carbon. The activated carbon adsorption method is mainly used for the removal of low-concentration gaseous pollutants.
