Industrial Odor Control
The main source of industrial odors
1. In the normal production process of the workshop, a large amount of organized waste gas will be generated in the steps of mixing, stirring, reaction, distillation, drying, and crystallization, and this type of waste gas often has a heavy odor;
2. A certain amount of unorganized waste gas will be produced in the process of pressure filtration, pulverization, centrifugation, etc. This type of waste gas has a heavy odor, and the waste gas escapes everywhere, which has a greater impact on the enterprise;
3. In addition, 9 categories of equipment in the workshop, such as pumps, compressors, agitators, valves, pressure relief equipment, sampling connection systems, open valves or open pipelines, flanges, and connectors, during long-term use, If the management is not in place, aging will occur, resulting in leakage of the interface and a certain amount of unorganized and odorous exhaust gas.
Industrial odor treatment recommendations
1. First of all, it is necessary to establish a basic ledger of dynamic and static sealing points, carry out LDAR detection work, identify leakage points, and promote enterprise rectification and repair;
2. Secondly, investigate the collection of unorganized waste gas in the production of enterprises, timely find the situation of non-collection or unreasonable collection, urge enterprises to collect compliantly, and change from unorganized to organized;
3. Finally, check whether the organized waste gas is leaked or leaked, whether there is direct discharge without treatment, and whether the treatment process is reasonable;
4. Use safe, non-toxic, environmentally friendly deodorant products that are more suitable for practical applications in workshops. While taking into account the economic benefits of operation, it achieves the ideal deodorization effect, decomposes odor molecules at the root, and inhibits the generation of odor.
————————————Way design planning—————————————

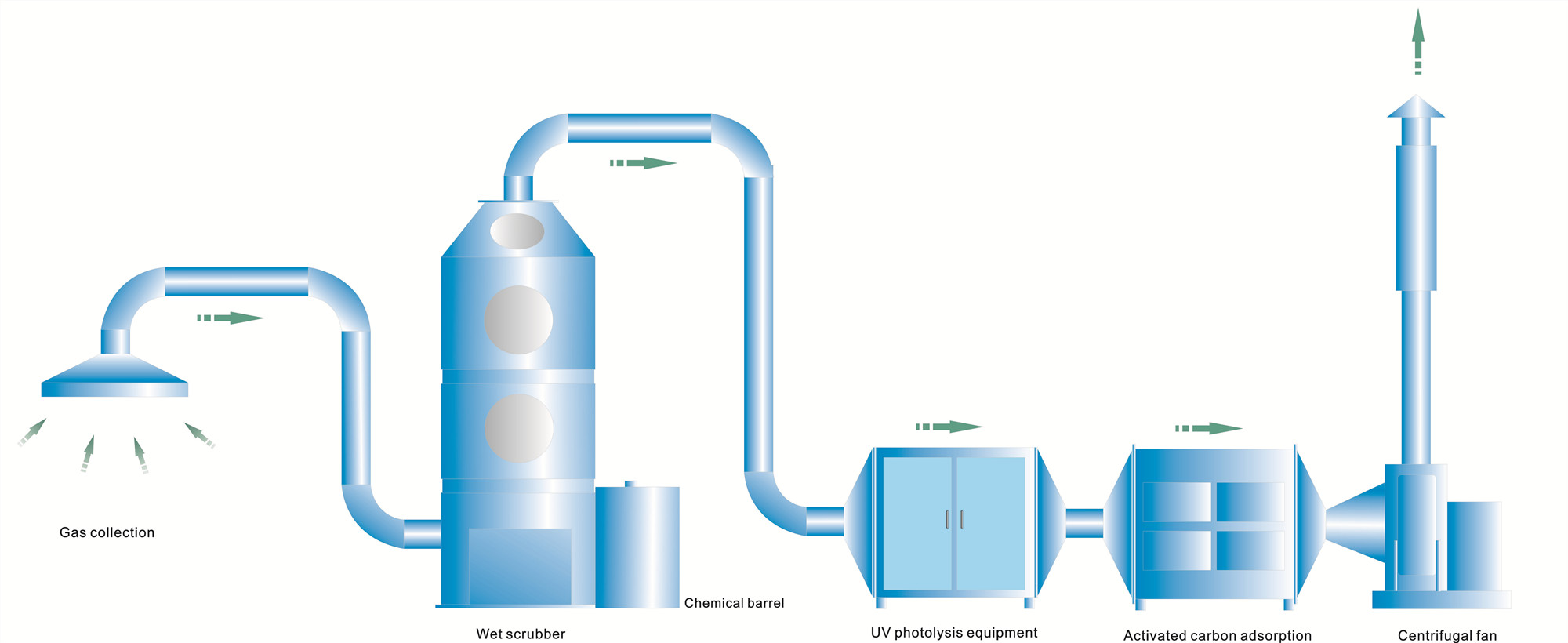

Exhaust gas collection + wet scrubber + UV photolysis purification equipment + activated carbon adsorption equipment + centrifugal fan
Application advantages::
1. The spray tower is suitable for the treatment of continuous and intermittent exhaust gas. The exhaust gas is deeply washed, adsorbed, and effectively reorganized from the root of the odor molecular structure, so that it is decomposed into non-toxic and tasteless small molecules CO2, H2O; and then discharged through the pipeline at high altitude; the process is simple, management, operation and maintenance are quite convenient and concise, It will not affect the production of the workshop; it has a wide range of applications and completely removes odors and harmful substances in the gas.
2. Activated carbon adsorption has high adsorption efficiency, mature technology and stable operation. After the waste gas washed by the spray tower enters the equipment, because the activated carbon utilizes the surface force of the high-performance active adsorbent solid itself, the organic waste gas molecules and odor molecules are adsorbed on its surface. It can adsorb the waste gas of organic solvents such as benzene, alcohol, ketone, ester, gasoline, etc., and is more suitable for waste gas treatment with high air volume and bottom solubility.
Application Environment:
Sewage treatment stations, waste treatment plants, waste transfer stations, poultry farms, pumping stations, municipalities, cigarette factories, flavor factories, manure treatment, meat processing plants, slaughterhouses, hospitals, restaurants, hotels, entertainment venues and other public places, Laboratory, dye factory, metal foundry, rubber factory, pharmaceutical factory, food processing factory, meat processing factory, pesticide factory, slaughter factory, poultry farm, paper factory, printing factory, plastic factory, petroleum factory, kraft paper factory, Synthetic resin factory, Chinese and Western medicine factory, kraft pulp factory, paint factory, plastic recycling factory, circuit board factory, chemical factory, printing factory, gas factory, fertilizer factory, foundry, oil refinery, feed factory, steel factory, synthetic detergent Factory, soap factory, spraying solvent and other fixed pollution sources or unorganized emission of foul gas in the atmosphere.
