Battery manufacturing is a crucial sector in modern industry, powering everything from smartphones to electric vehicles. However, the production process involves handling and generating a range of hazardous gases and pollutants. Effective waste gas treatment is essential to mitigate environmental impact and ensure compliance with stringent regulatory standards. This article delves into the advanced methods used to treat waste gases in battery factories, highlighting key technologies and their environmental benefits.
The Importance of Waste Gas Treatment in Battery Manufacturing
Battery manufacturing involves several stages, including the production of electrode materials, cell assembly, and the final packaging. Each of these stages can emit waste gases containing volatile organic compounds (VOCs), acidic gases, and particulate matter. The primary pollutants in battery factory emissions include sulfur dioxide (SO₂), nitrogen oxides (NOx), carbon monoxide (CO), and a variety of organic compounds such as solvents and acid fumes.
Uncontrolled emissions from battery factories can contribute to air pollution, pose health risks to workers and nearby communities, and lead to environmental degradation. Therefore, implementing robust waste gas treatment systems is not only a regulatory requirement but also an ethical responsibility for manufacturers.
Key Waste Gas Treatment Technologies
- Adsorption Systems
Adsorption is a common method used to capture and remove VOCs and other pollutants from waste gases. This technique involves passing the contaminated gas through a bed of adsorbent material, such as activated carbon, which traps the pollutants on its surface. The effectiveness of adsorption depends on the nature of the adsorbent material and the specific pollutants.
Activated carbon is widely used due to its high surface area and porous structure, which allows it to adsorb a large volume of gases. For more challenging compounds, such as those with low adsorption capacity, alternative materials like zeolites or metal-organic frameworks (MOFs) may be employed.
One drawback of adsorption systems is the need for periodic regeneration or replacement of the adsorbent material, which can be costly and generate additional waste.
- Scrubbing Systems

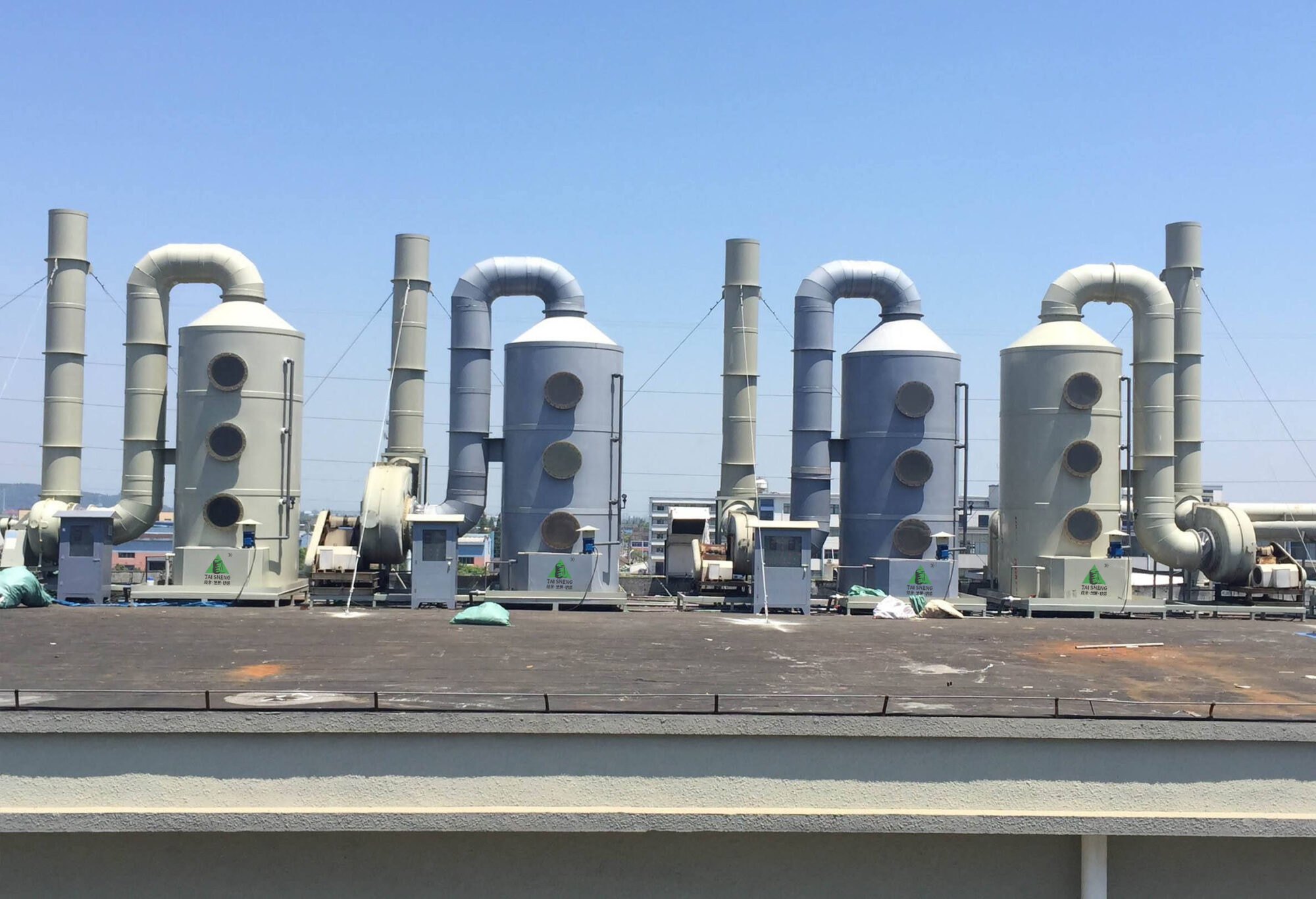

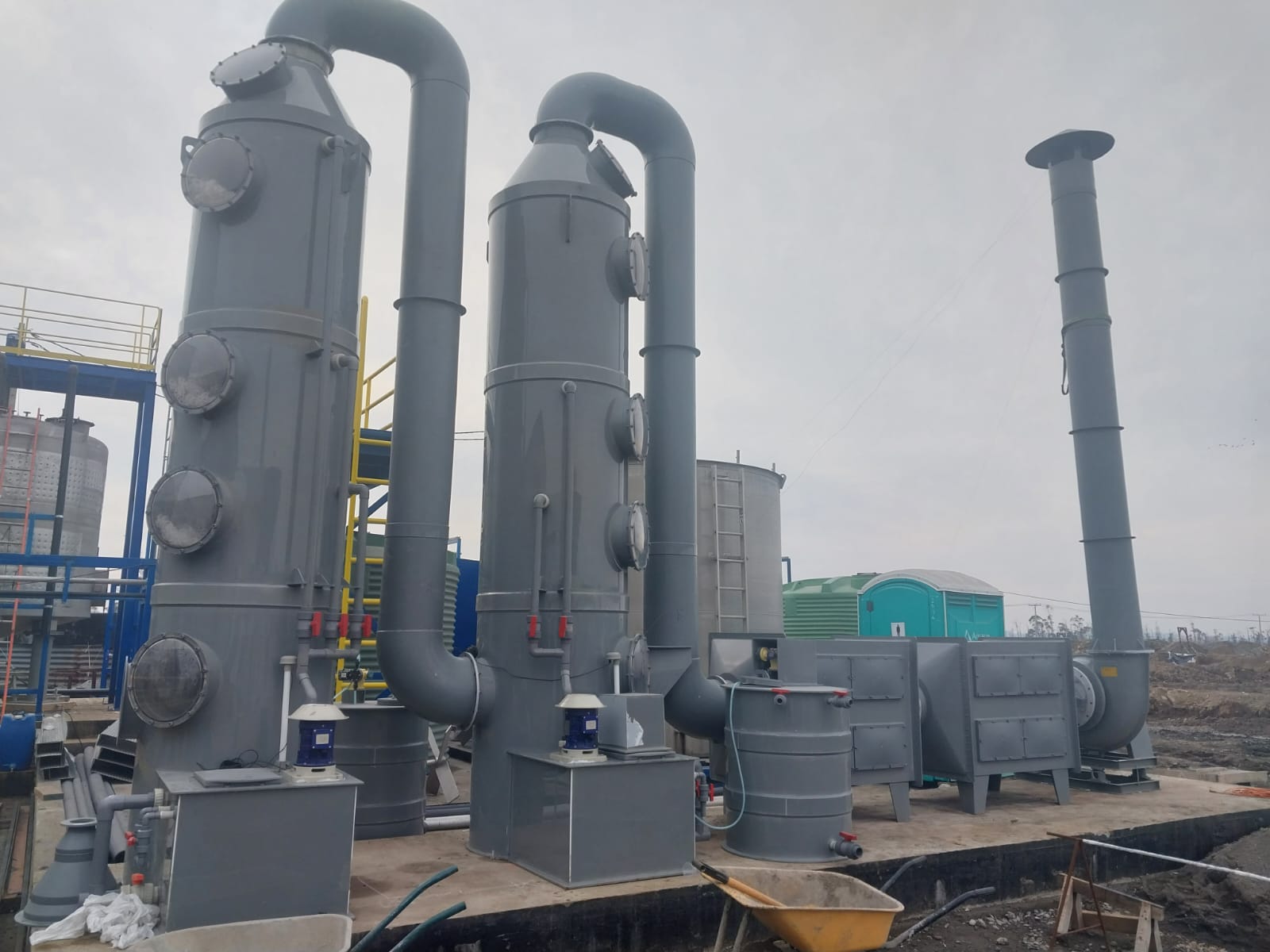

Scrubbing systems are designed to remove acidic gases, such as sulfur dioxide and hydrogen chloride, from waste gas streams. There are several types of scrubbers, including wet scrubbers and dry scrubbers:
- Wet Scrubbers: These systems use a liquid solution, typically an alkaline solution, to absorb and neutralize acidic gases. The contaminated gas is passed through a scrubbing tower where it comes into contact with the liquid. The absorbed gases react with the solution, forming salts or other compounds that are then removed from the liquid phase. Wet scrubbers are effective at handling high concentrations of acidic gases and can achieve high removal efficiencies.
- Dry Scrubbers: Dry scrubbers use solid or powdered sorbents to capture acidic gases. These systems are less complex than wet scrubbers and do not generate wastewater. Instead, the sorbent material is replaced or regenerated periodically. Dry scrubbers are suitable for low to moderate concentrations of acidic gases and are often used in conjunction with other treatment technologies.
- Thermal Oxidizers
Thermal oxidizers are employed to treat VOCs and other organic pollutants by heating them to high temperatures in the presence of oxygen. This process, known as thermal oxidation, breaks down the organic compounds into carbon dioxide (CO₂) and water vapor. Thermal oxidizers are effective at achieving high destruction efficiencies and are capable of treating large volumes of waste gas.
There are several types of thermal oxidizers, including direct-fired oxidizers, recuperative oxidizers, and regenerative oxidizers:
- Direct-Fired Oxidizers: In this type, the waste gas is directly combusted in a high-temperature chamber. This method is suitable for gases with high calorific value and is straightforward in design.
- Recuperative Oxidizers: These systems use heat exchangers to preheat the incoming waste gas using the heat from the exhaust gas. This energy recovery improves overall efficiency and reduces operating costs.
- Regenerative Oxidizers: Regenerative systems use ceramic beds to capture and store heat from the exhaust gas, which is then used to preheat the incoming waste gas. This method is highly efficient and is often used in large-scale operations.
- Catalytic Oxidizers
Catalytic oxidizers employ a catalyst, usually made of platinum or palladium, to lower the activation energy required for oxidation reactions. The waste gas is passed over the catalyst at lower temperatures compared to thermal oxidation, facilitating the breakdown of VOCs and other organic compounds. Catalytic oxidizers are energy-efficient and well-suited for treating low to moderate concentrations of pollutants.
The primary advantage of catalytic oxidizers is their ability to operate at lower temperatures, which reduces energy consumption and operational costs. However, the catalyst material can be expensive and may require periodic replacement or regeneration.
- Electrostatic Precipitators
Electrostatic precipitators (ESPs) are used to capture particulate matter, such as dust and metal particles, from waste gases. These systems use an electrostatic charge to attract and collect particles on charged plates or wires. The captured particles are then removed from the system.
ESPs are highly effective in removing fine particulates and are often used in conjunction with other treatment technologies to address a broader range of pollutants. They are suitable for handling large volumes of gas with low to moderate particle concentrations.
- Biofiltration
Biofiltration involves passing waste gas through a bed of microorganisms, typically housed in a media like compost or peat. These microorganisms biologically degrade organic pollutants, including VOCs and odorous compounds. Biofilters are environmentally friendly and can achieve high removal efficiencies for certain types of pollutants.
One of the challenges of biofiltration is maintaining optimal conditions for microbial activity, including moisture and temperature control. Additionally, biofilters are generally more effective for low to moderate concentrations of pollutants.
Conclusion
As battery manufacturing continues to expand, effective waste gas treatment will remain a critical aspect of sustainable production practices. Advanced technologies such as adsorption, scrubbing, thermal and catalytic oxidation, electrostatic precipitation, and biofiltration play crucial roles in mitigating the environmental impact of battery production.
By employing a combination of these methods, battery manufacturers can significantly reduce emissions, comply with environmental regulations, and contribute to a cleaner, healthier environment. Ongoing research and technological advancements will further enhance the efficiency and effectiveness of these systems, paving the way for more sustainable battery manufacturing practices in the future.
